Wax Foundation Making Machine - Manual Beeswax Press

Turn Your Own Beeswax Back Into Foundation, One Sheet at a Time

Every beekeeper ends up with wax: cappings from extraction, old brood comb cut out at the end of the season, scrapings off a hive tool. Most of it gets melted into a block and left on a shelf in the shed, because buying foundation is easier. So you keep paying for sheets every spring, made from wax out of hives you know nothing about.

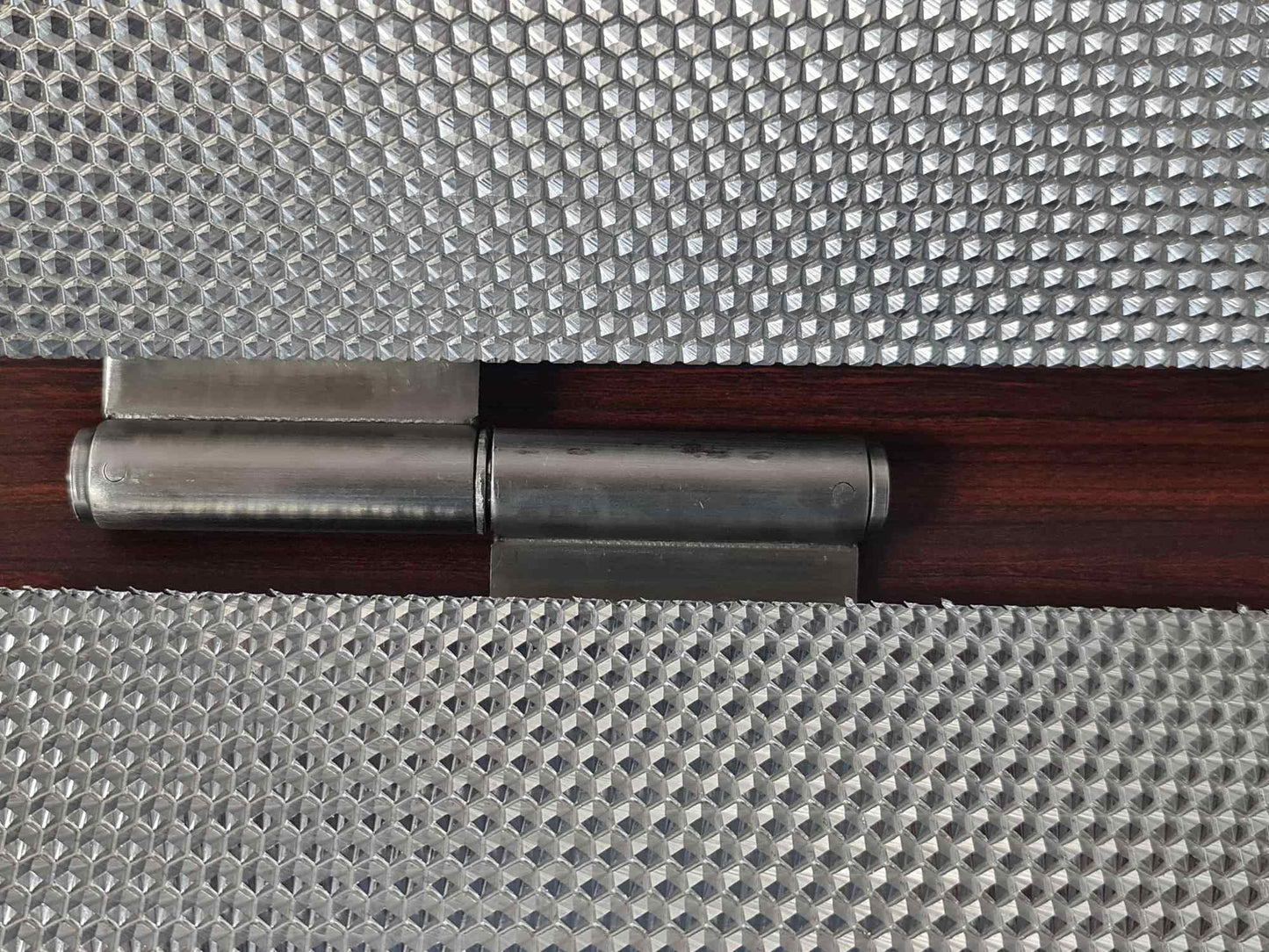

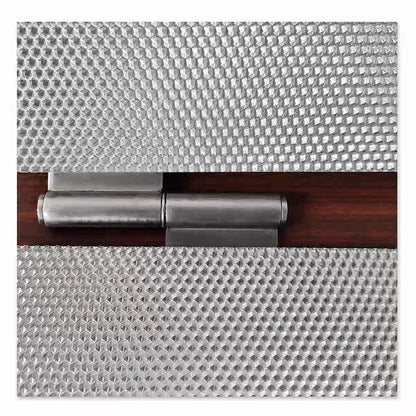

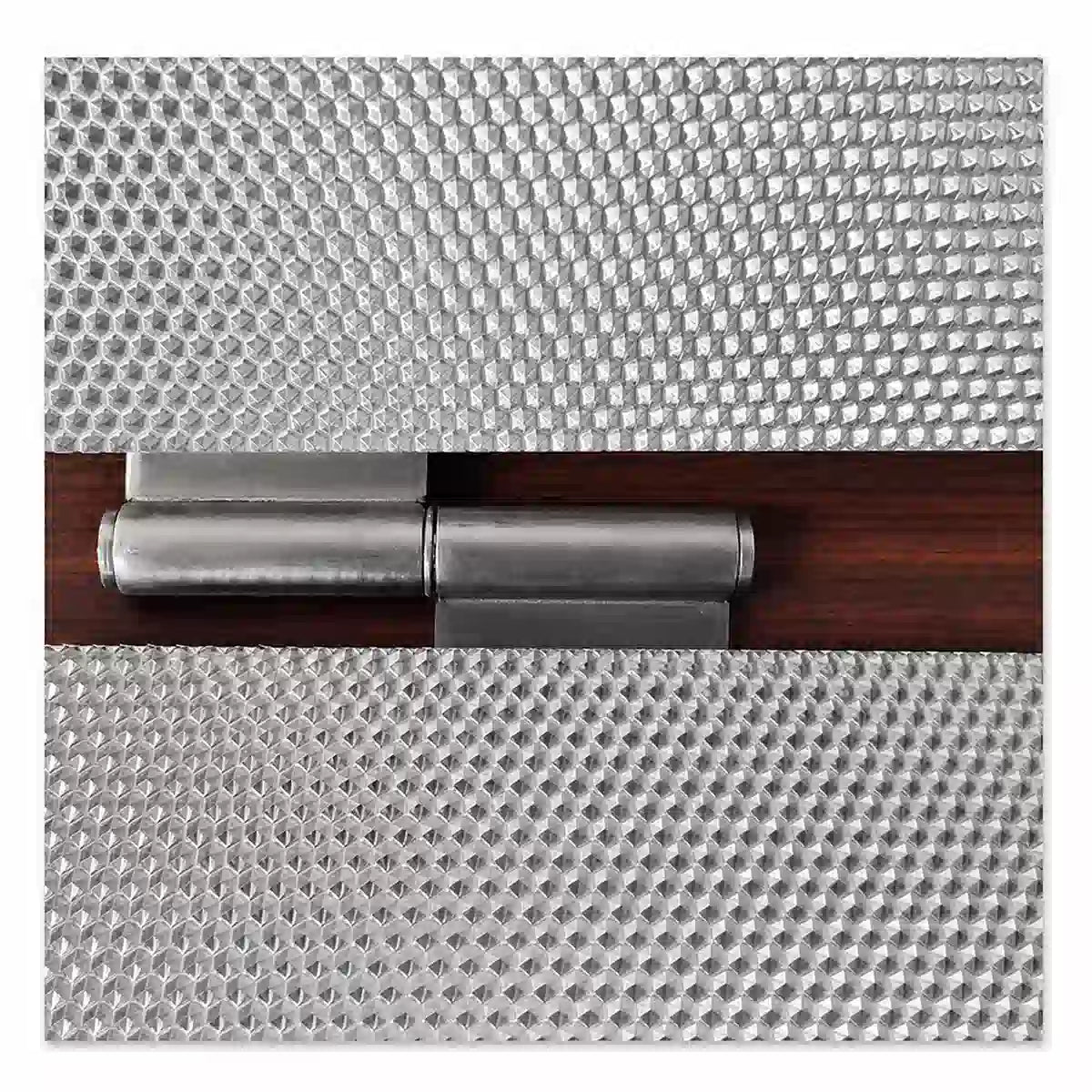

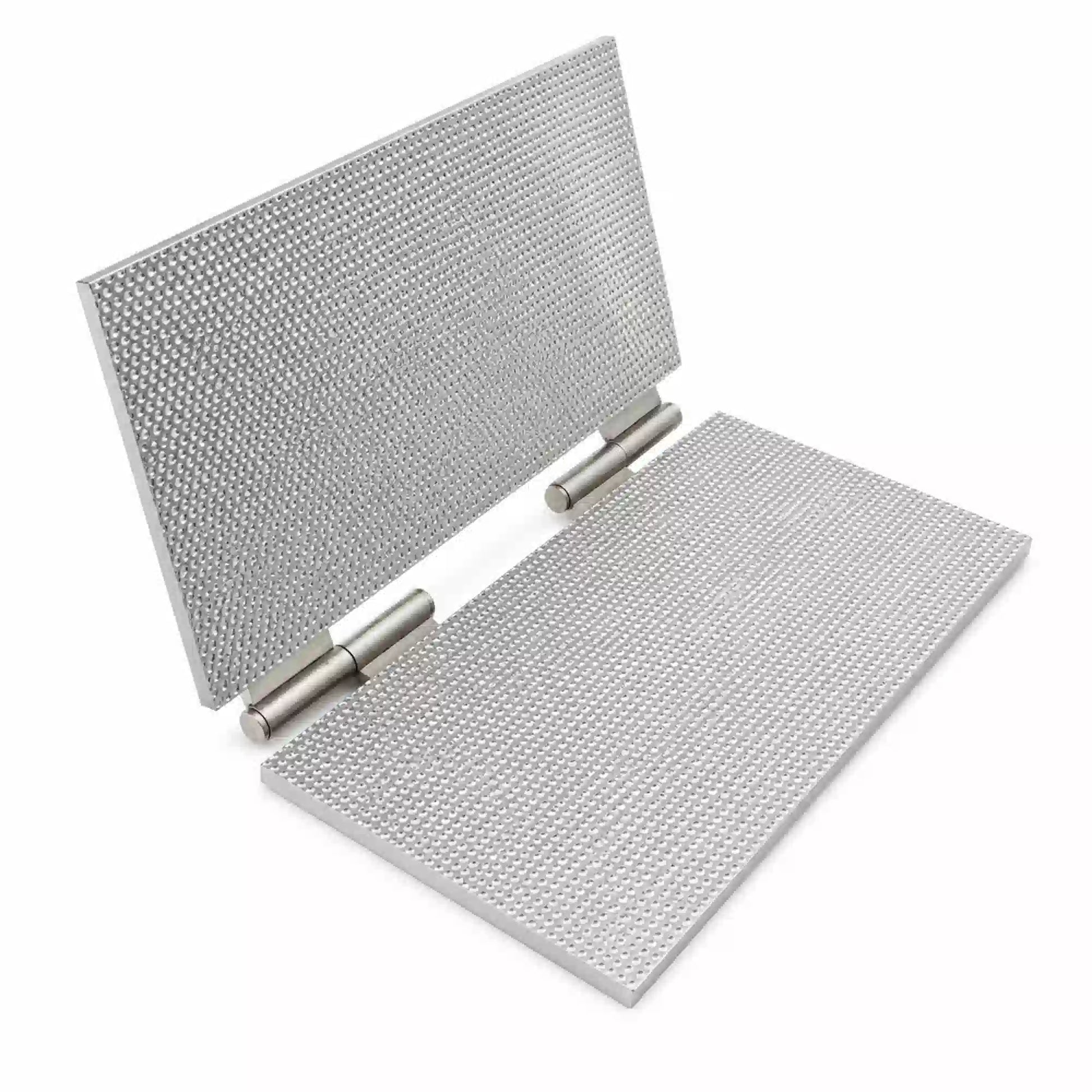

This manual foundation press lets you close that loop. It is a hinged metal mould with an embossed hexagonal cell pattern on both plates, measuring 22cm by 42cm, the size of a full depth Langstroth foundation sheet. Pour in melted beeswax, close the lid, cool it in water and peel out a finished sheet. It suits hobbyists running a handful of hives who want to use their own wax, and sideline operations who want to know what goes into their brood boxes.

How It Works in Five Steps

Brush both plates with a weak soapy water solution so the wax releases cleanly. Pour melted wax evenly across the bottom plate. Close the top plate and press down firmly so the pattern is embossed right through. Lower the closed machine into cold water for a minute or two until the wax sets, then open it and peel the sheet off.

Expect the first few sheets to be rough. Wax temperature is the thing to get right. Too hot and the sheet comes out thin and tears when lifted. Too cool and it sets before it spreads, leaving thick patches and gaps at the edges. Most people find the sweet spot within a dozen sheets.

Why Bother Making Your Own

Commercial foundation is made from pooled wax collected from many apiaries, and beeswax holds onto whatever has been used in those hives. Making your own means the only thing in your brood frames is wax from your own bees, rendered and filtered by you, which matters for a low-intervention or organic operation. Every sheet you press is one you did not buy, and across five or ten hives and a few years of harvests that adds up. The embossed cell base gives the colony the same head start drawing comb as a bought sheet.

Sized for Full Depth Frames

The 22cm by 42cm plate makes a sheet that drops straight into a full depth Langstroth frame. For WSP or Ideal boxes, make the full size sheet and trim it with a sharp knife or steel rule. Sheets come out unwired, so fit them as you would plain foundation, with cross wires and an embedder or by pressing them into frames with wax-ready grooves.

What It Is Not

This is a press, not a roller mill. It makes one sheet at a time, each taking a couple of minutes including cooling, so fifty sheets is an afternoon's work. Running hundreds of hives calls for a motorised mill. It also does not melt wax, so you need a separate wax melter or double boiler, and the wax should be rendered and filtered first. Any debris in the pot ends up embossed into the sheet.

Specifications

• Plate size: 22cm x 42cm (full depth Langstroth sheet)
• Type: manual hinged press with embossed metal plates

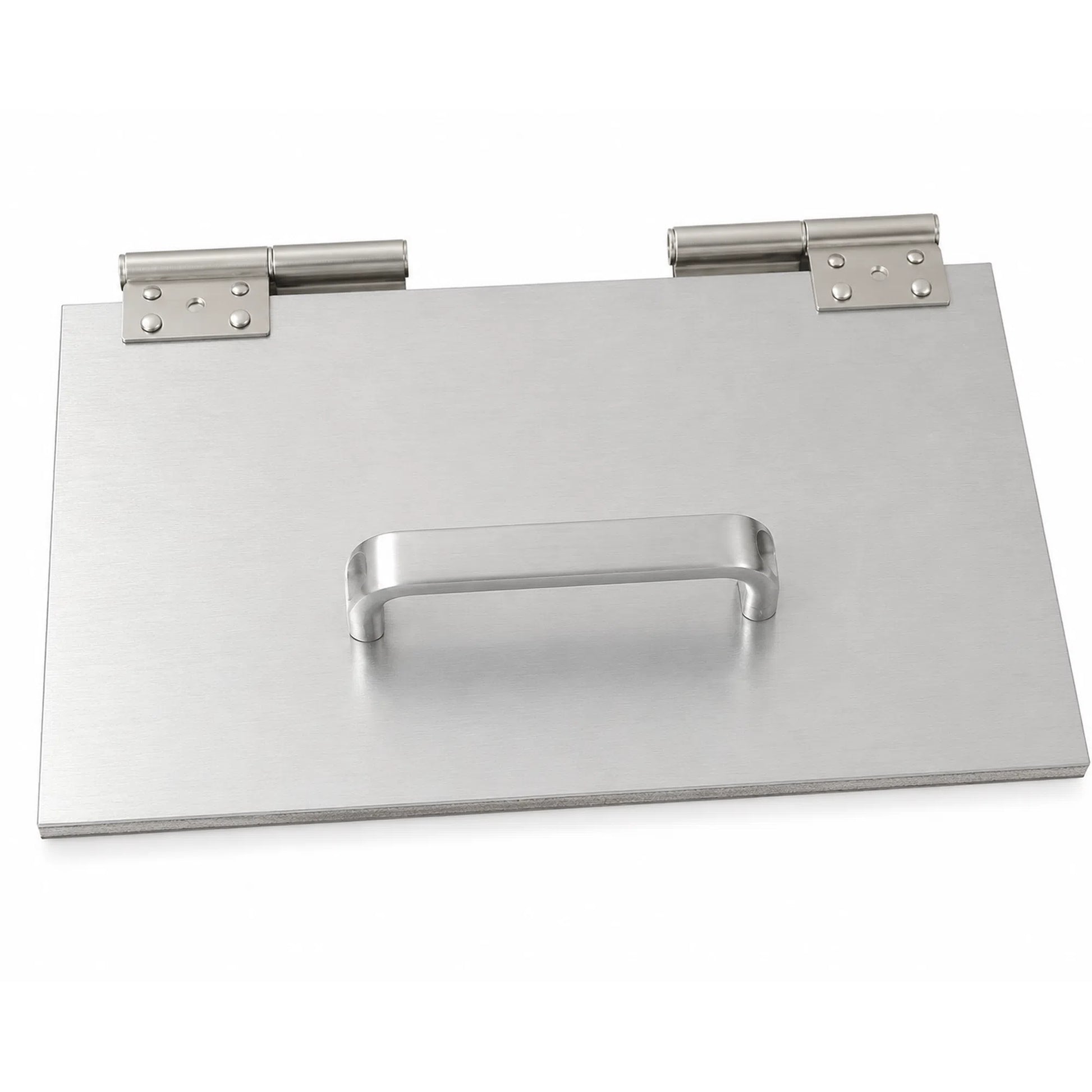

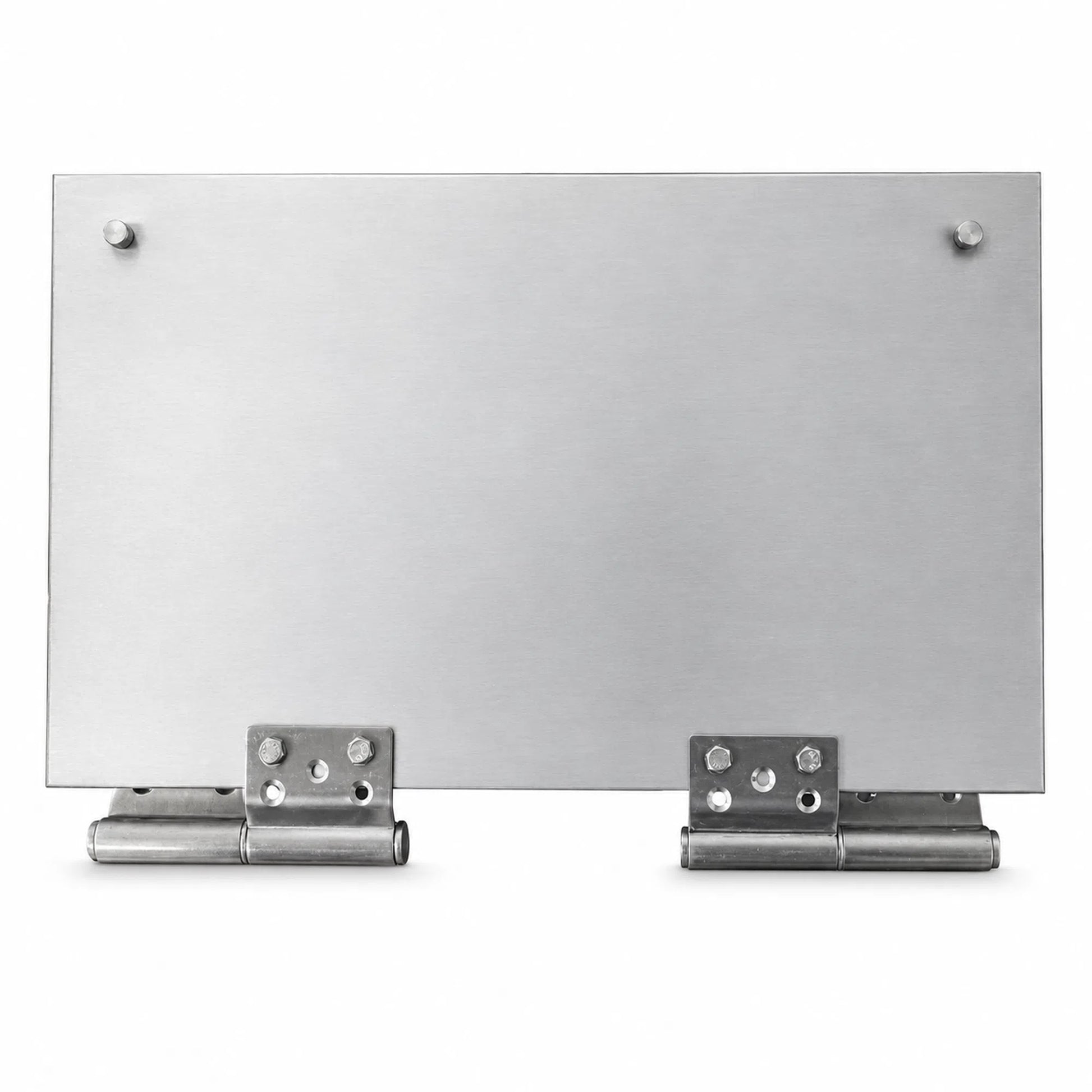

• Construction: metal plates, metal hinges, locking clips on the lid
• Power: none required, fully manual
• Cooling method: cold water bath, 1 to 2 minutes per sheet
• Also required: wax melter or double boiler, soapy water release solution
• Suits: full depth frames direct, WSP and Ideal frames after trimming

What size sheet does the press make?

22cm by 42cm, the size of a full depth Langstroth foundation sheet. It drops straight into a full depth frame.

Does it make wired foundation?

No. Sheets come out unwired, so fit them with cross wires and an embedder or press them into frames with wax-ready grooves.

How do I make a sheet?

Brush both plates with weak soapy water, pour melted wax on the bottom plate, close and press down, cool in cold water for a minute or two, then peel the sheet off.

Does it melt the wax?

No. You need a separate wax melter or double boiler, and the wax should be rendered and filtered first.

Does it need power?

No. It is fully manual, with locking clips on the lid.

How long does each sheet take?

A couple of minutes including cooling. Fifty sheets is an afternoon's work rather than an hour's.

Why do my first sheets look rough?

Wax temperature is the thing to get right. Too hot gives thin sheets that tear, too cool sets before spreading. Most people find the sweet spot within a dozen sheets.

Can I use it for WSP or Ideal frames?

Yes. Make the full size sheet and trim it with a sharp knife or steel rule.

Is it suitable for commercial operations?

No. It is a press that makes one sheet at a time. Running hundreds of hives calls for a motorised mill.

Why make my own foundation?

Commercial foundation uses pooled wax from many apiaries. Pressing your own means the wax in your brood frames comes only from your own bees.
