Wax Embossing Roller Machine

Make Your Own Beeswax Foundation Sheets

Every beekeeper accumulates beeswax. Cappings from extraction, comb scraps from cleaning frames, old foundation from rotated-out brood boxes — it all adds up to a steady supply of pure beeswax sitting in your shed. What if you could turn that wax into brand-new honeycomb foundation sheets — the very thing you keep buying every season at premium prices? That’s exactly what this machine does.

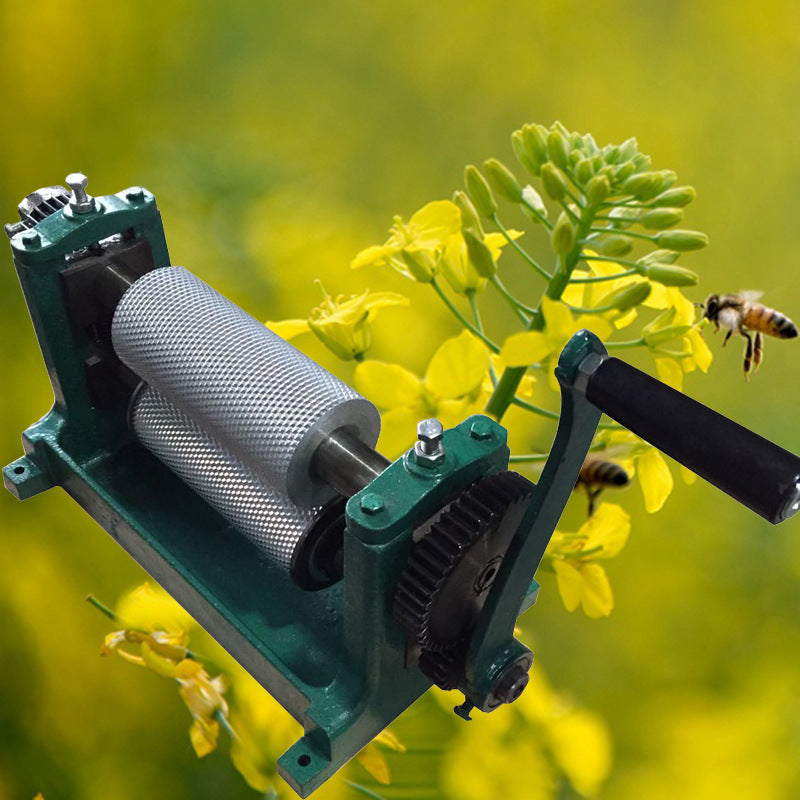

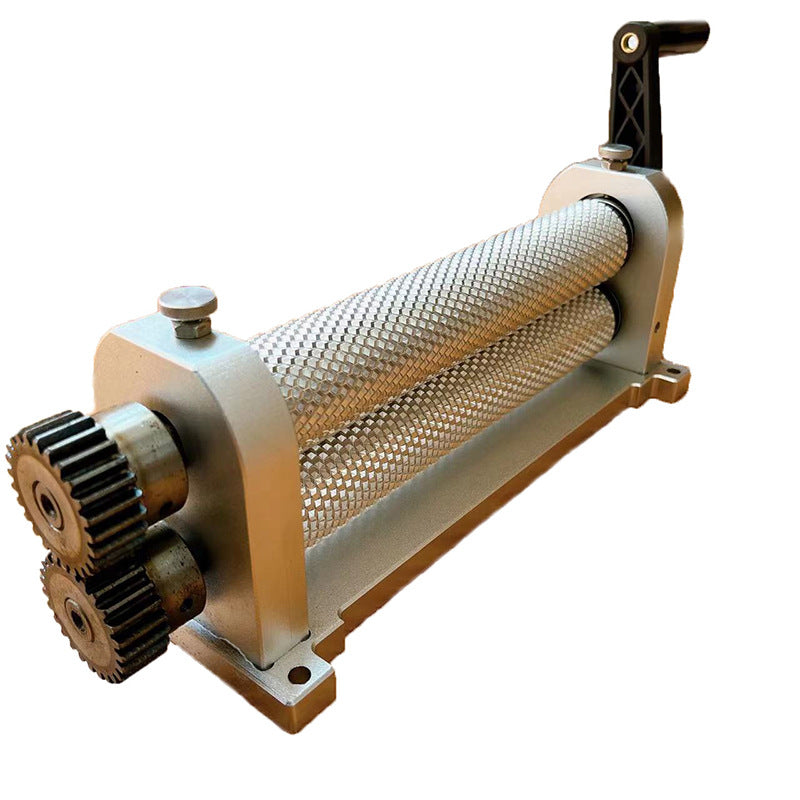

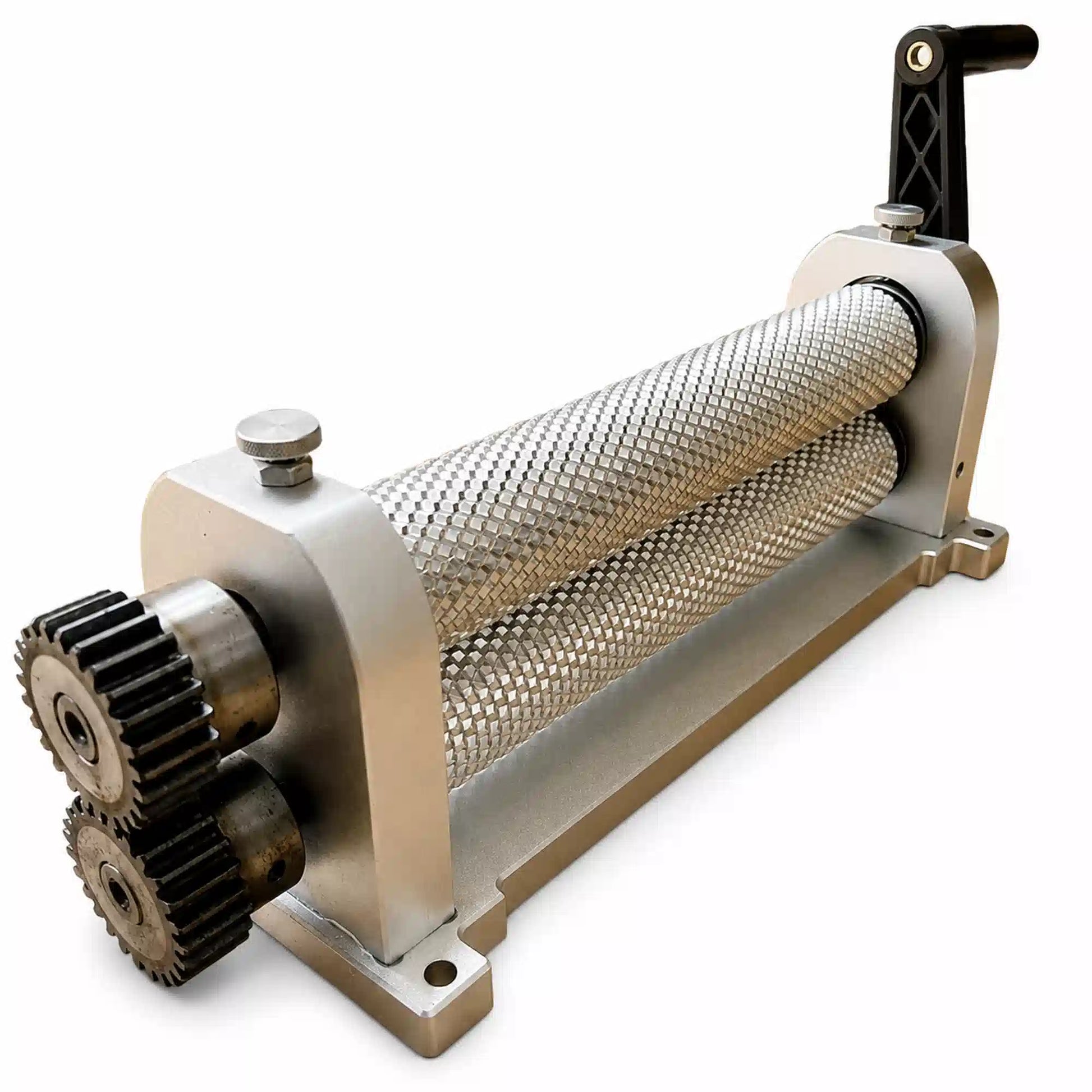

The Wax Embossing Roller Machine is a manual roller designed to press plain beeswax sheets into perfectly-formed honeycomb foundation — giving your bees the ideal base for drawing comb while letting you recycle your own wax indefinitely. For sideliners and commercial beekeepers, it’s one of the smartest equipment investments you can make: pay once, then produce unlimited foundation sheets for free using wax you already have.

How Does It Work?

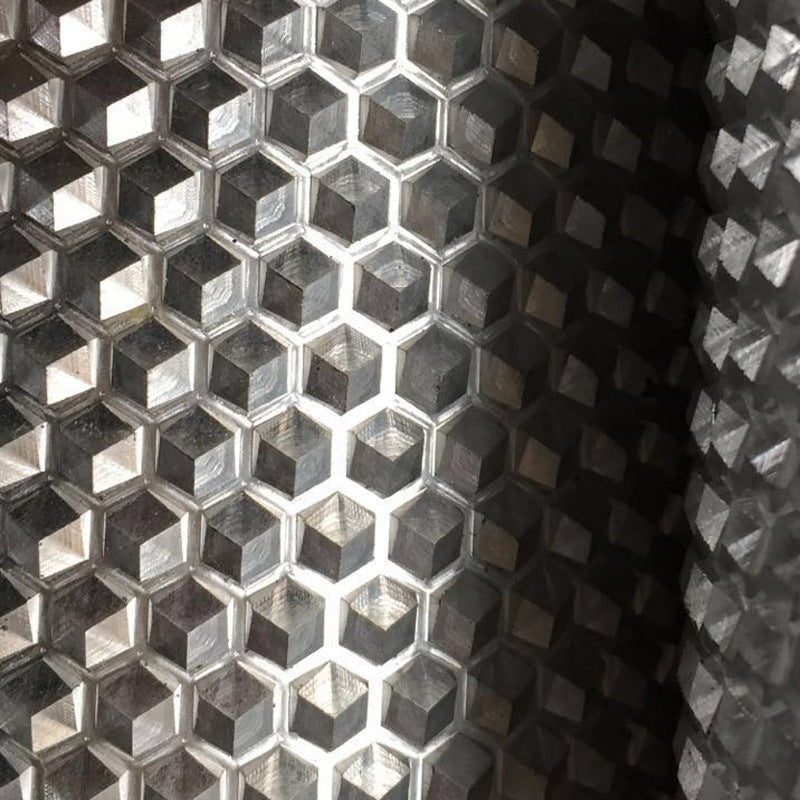

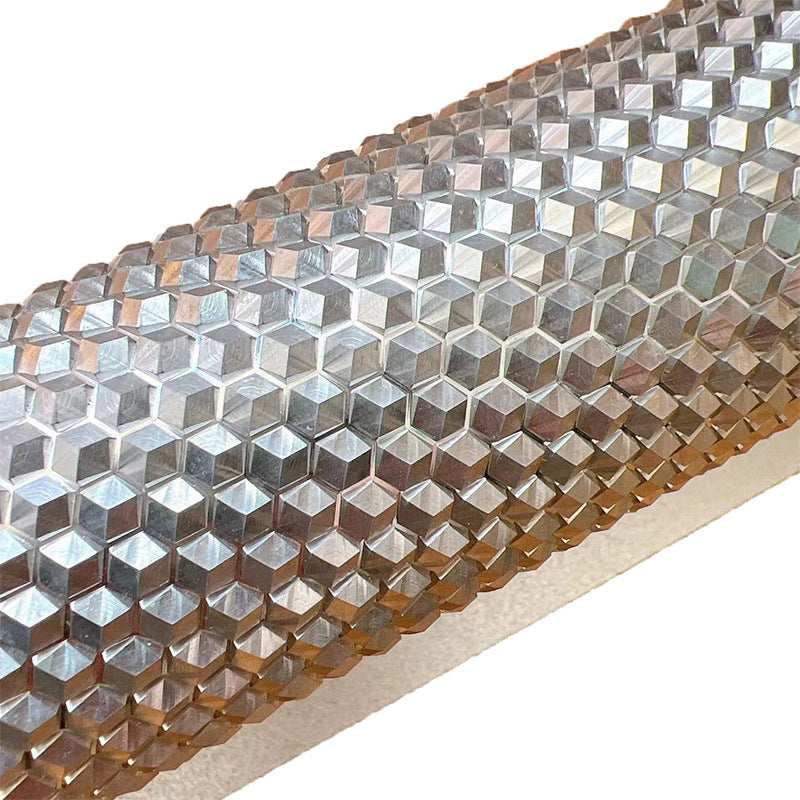

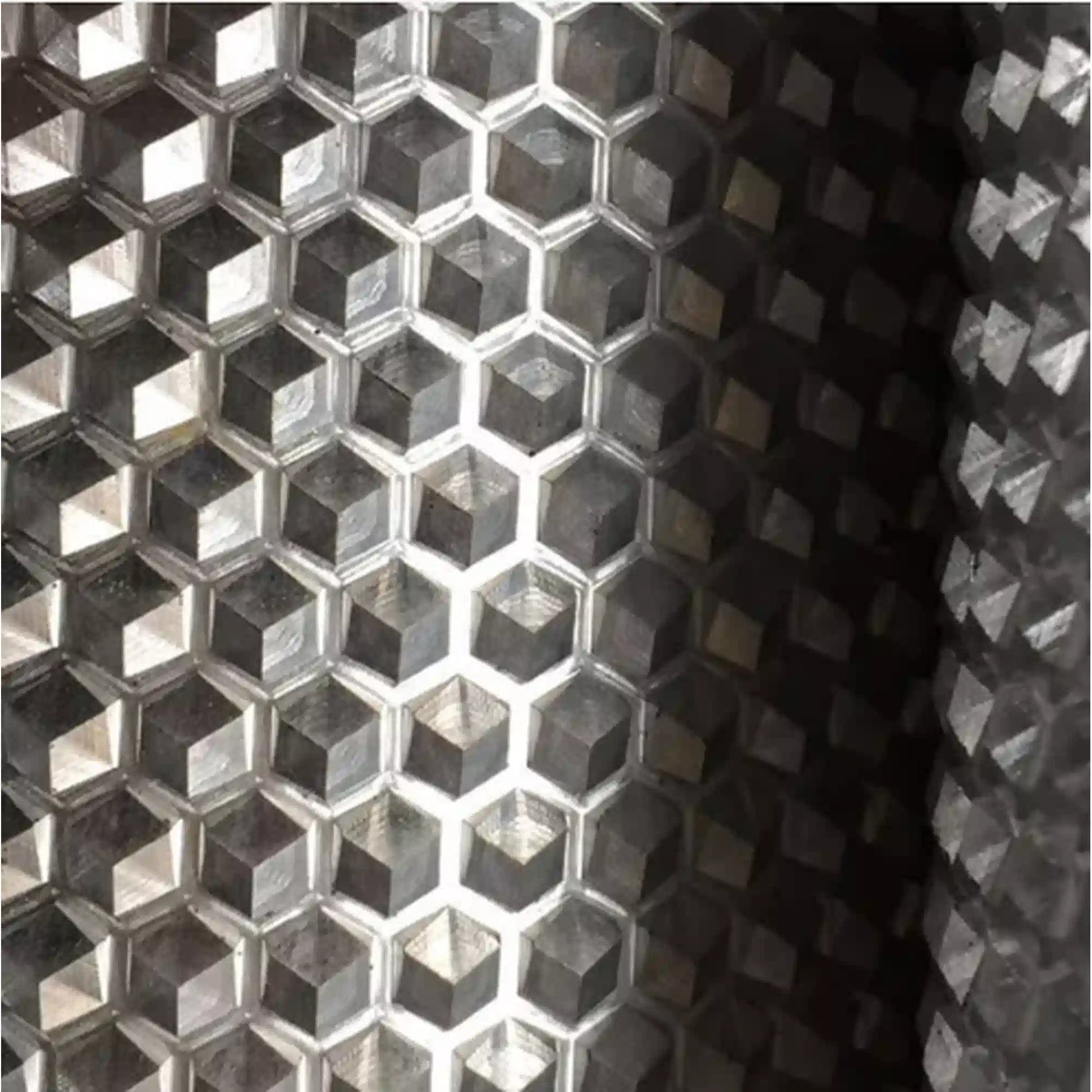

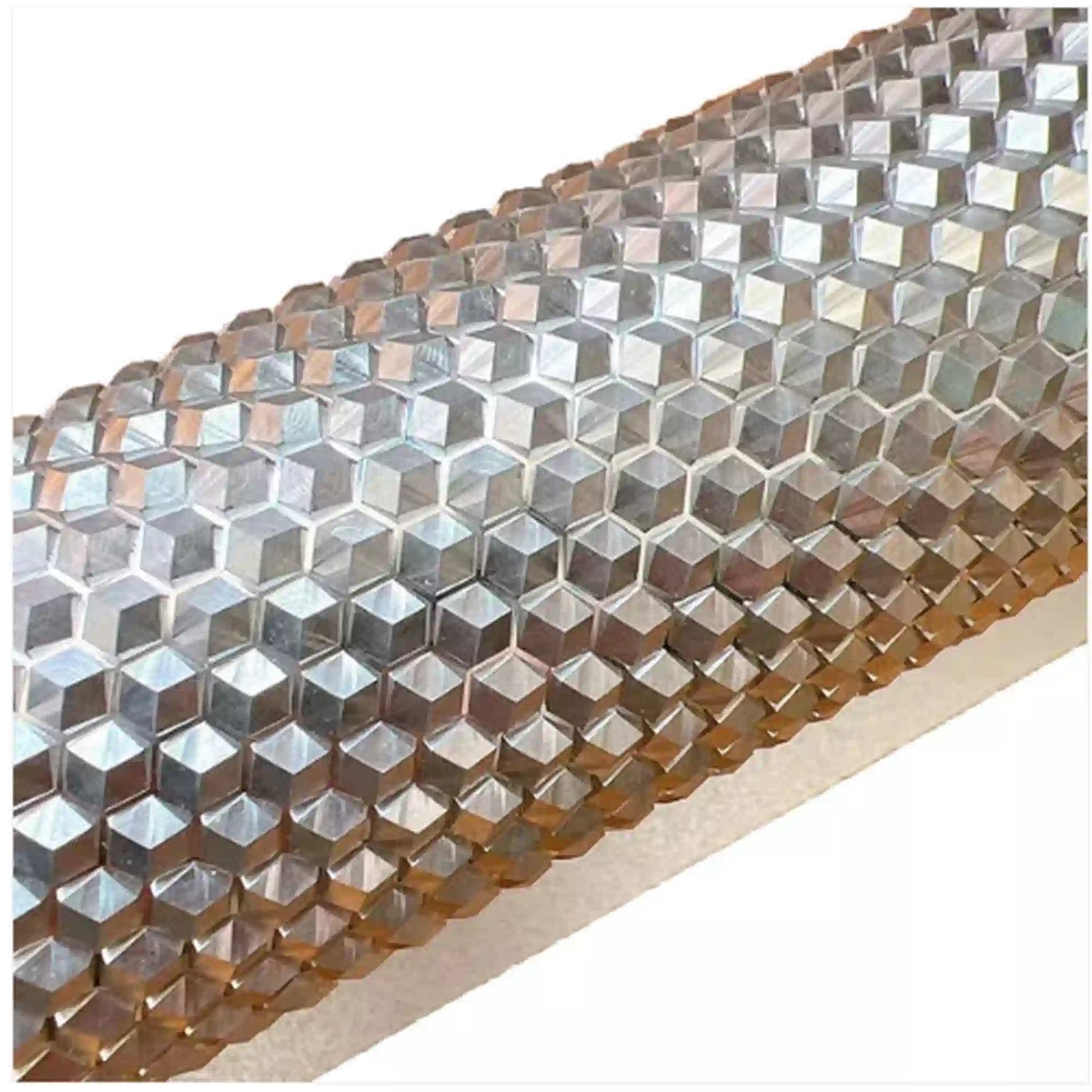

The process is surprisingly simple. First, you melt your raw beeswax and pour it into thin, flat sheets (using a wax sheet mould or a sheet of cool water). Once cooled and ready, you feed each plain wax sheet between the two embossing rollers and rotate the handle clockwise. The rollers, engraved with precise honeycomb patterns, press the hexagonal cell base into both sides of the wax simultaneously. What goes in as a plain sheet comes out as ready-to-use foundation — the same kind you’d pay $5–10 per sheet for at the supplier.

Will I Save Money With This Machine?

Absolutely — and the math is pretty compelling. A single sheet of premium beeswax foundation typically costs $5–10 retail. If you run 20 hives and need to refresh 100 sheets a year, that’s $500–1,000 in foundation costs annually. With this machine, you’re using wax you already have (from cappings, scrap comb, and rotated-out frames) and producing those same sheets at essentially zero material cost. The machine pays for itself within 1–2 seasons for most sideliners, and continues paying dividends every year after.

Can I Adjust the Sheet Thickness?

Yes — the machine has two M10 × 50mm adjustment screws on the cover that let you fine-tune the gap between the rollers, allowing you to produce sheets of different thicknesses to suit your needs. The standard adjustment delivers approximately 50g per pack of 30 foundation sheets, which is the typical commercial standard. You can also use the adjuster screws to balance the front and rear slopes of each sheet — critical for consistent, high-quality output.

How Durable Is the Machine?

This is built for serious, long-term use. Heavy-duty rollers, a precisely-machined stainless steel cutting knife with automatic edge cutting, oiled shaft sleeves, timing gears, and a sturdy steel frame all designed for decades of reliable operation. Regular maintenance is straightforward — lubricate the four shaft sleeves and four gears periodically, check the oil hole every 20–30 packs of sheets, and inspect the shaft sleeves for wear. With proper care, this machine becomes a permanent feature of your beekeeping workflow rather than a consumable purchase.

Is It Difficult to Use?

Not at all — once you’ve set up the machine and dialled in your sheet thickness, the operation is genuinely simple. The included instruction manual walks you through setup, adjustment, and routine maintenance. The most important habit is regular lubrication — oil the four shaft sleeves and gears before first use, then top up every 20–30 packs. A few practical tips: never crush hard objects between the rollers, keep the stainless steel knife protected from impacts, and align the timing gear markings precisely if you ever need to reassemble. Beyond that, it’s a tool that rewards a small amount of care with years of consistent performance.

Who Is This Machine For?

This isn’t a beginner tool — it’s a serious investment piece for beekeepers who want long-term self-sufficiency and significant cost savings. It’s ideal for sideliner beekeepers running 20–100+ hives who go through hundreds of foundation sheets per season, commercial operators wanting to control their own supply chain, beekeeping clubs and co-operatives sharing equipment across multiple members, organic and sustainable apiaries wanting full control over their wax purity, and anyone selling foundation as a side business to other local beekeepers.

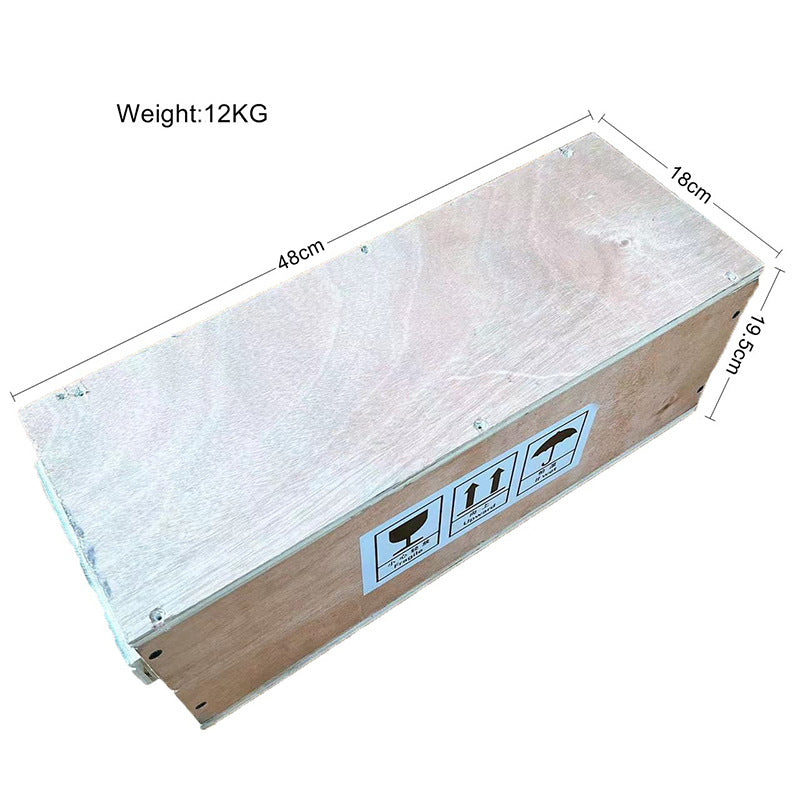

What’s Included in the Box?

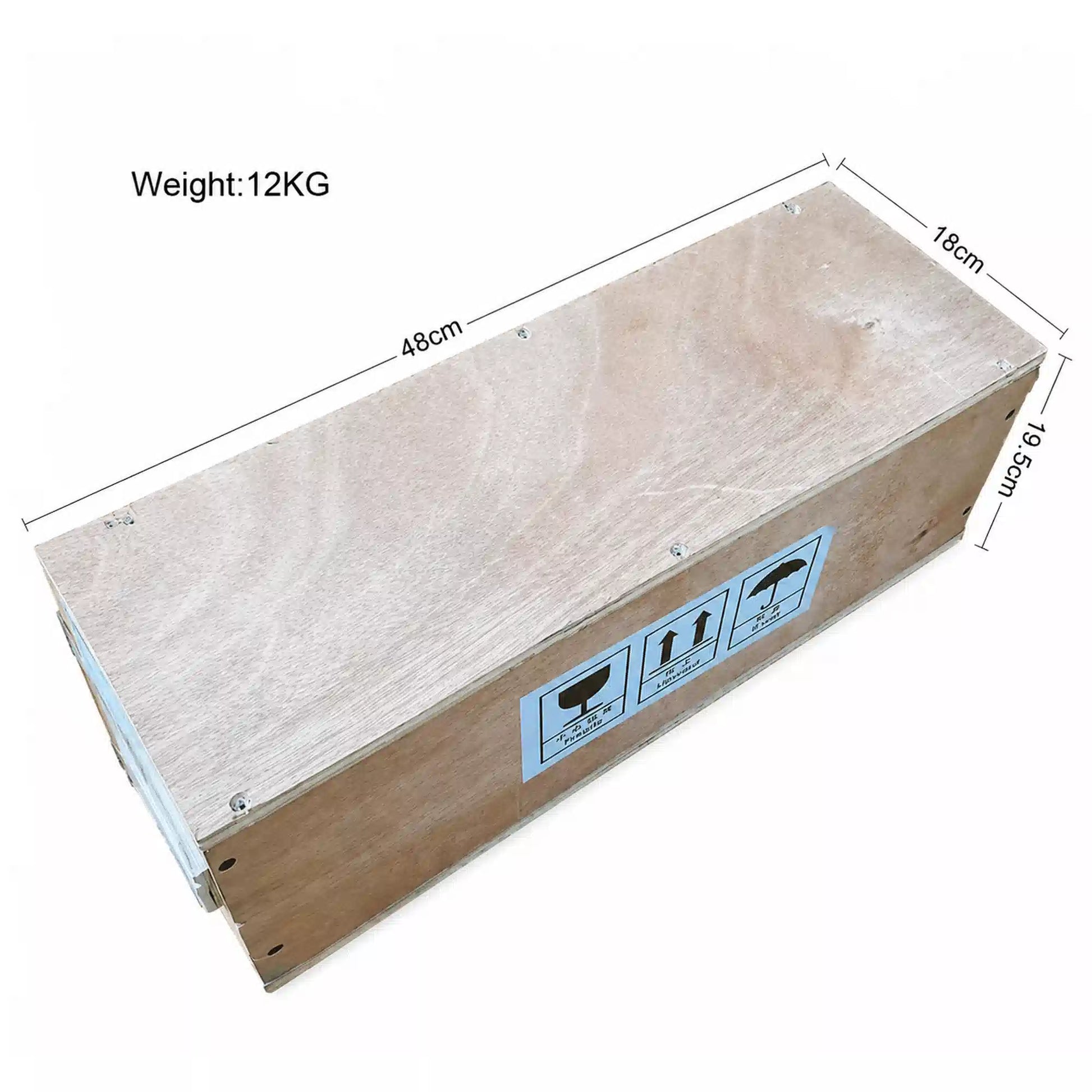

The machine arrives with the complete embossing roller assembly, sturdy steel frame, stainless steel cutting knife with automatic edge cutting, adjustment screws, compression spring, oil eyes for lubrication, and a complete instruction manual covering setup, adjustment, daily use, and routine maintenance. You’ll need to provide your own clean melted beeswax and a suitable shelf or table to mount the machine on — it should be firmly fixed in place during use.

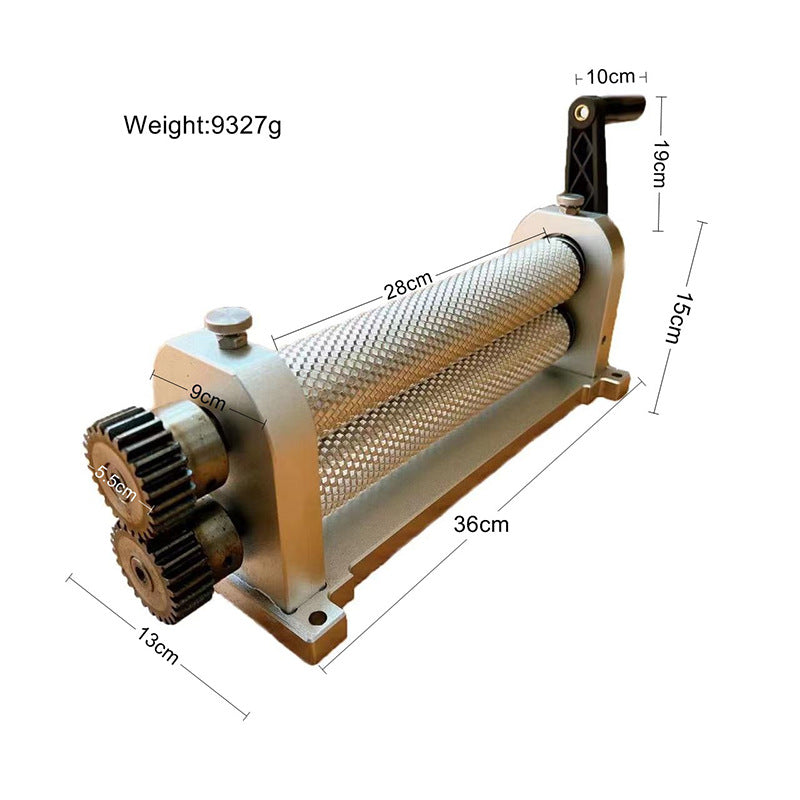

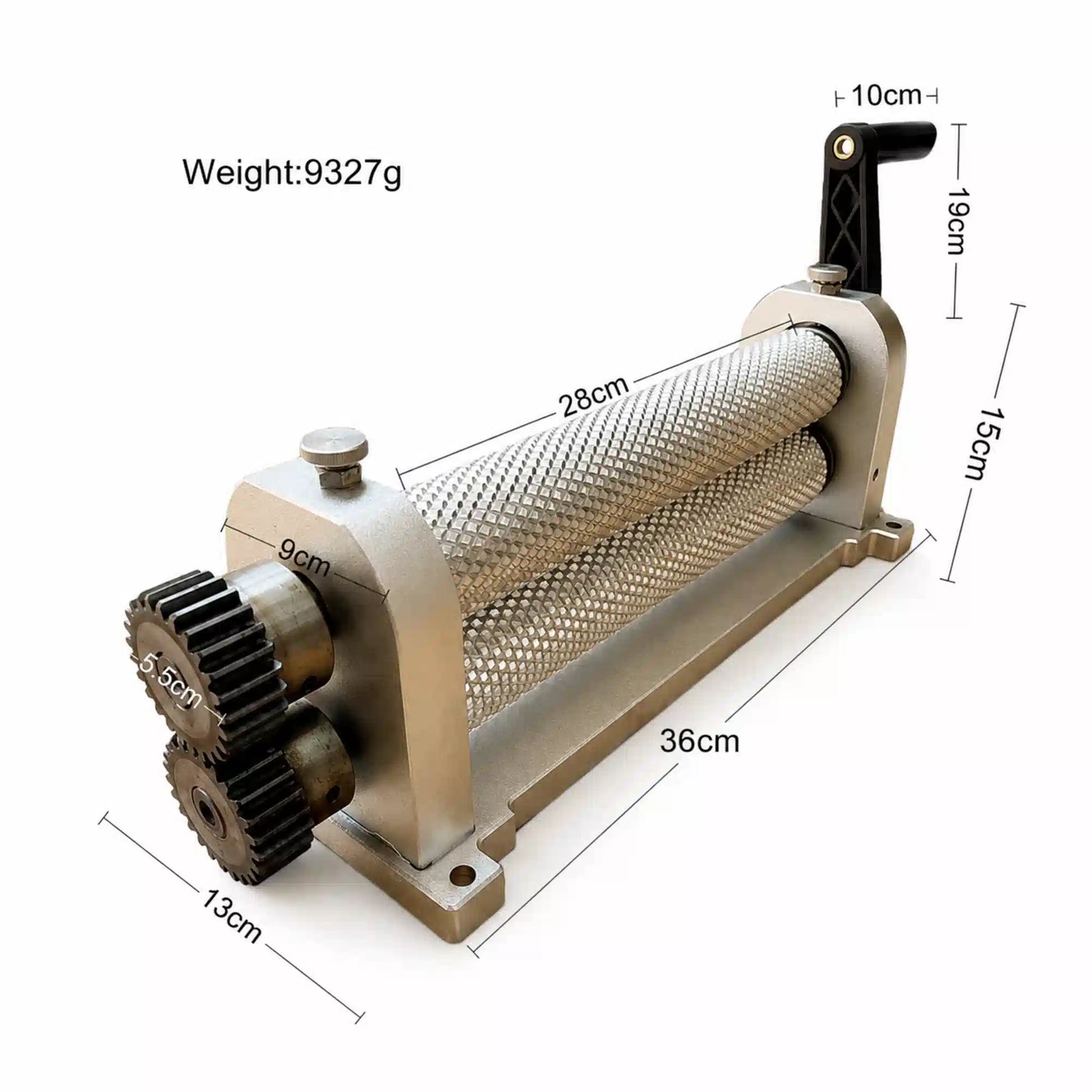

Specifications

●     Product: Wax Embossing Roller Machine (Beeswax Foundation Sheet Machine)

●     Operation: Manual hand-cranked roller

●     Function: Embosses honeycomb pattern onto plain beeswax sheets

●     Output: Approx. 50g per pack of 30 sheets (every 6 turns)

●     Thickness adjustment: Two M10 × 50mm screws for fine-tuning

●     Cutting knife: Stainless steel with automatic edge cutting

●     Adjuster: Built-in adjustment for uniform front and rear slopes

●     Maintenance: Oil eyes, 4 shaft sleeves, 4 gears, timing gears

●     Installation: Mounts firmly on a sturdy shelf or workbench

●     Includes: Complete instruction manual

Why Buy From Beekeeping Gear?

Beekeeping Gear has been Australia’s trusted source for specialist beekeeping equipment and serious commercial tools since 2016. We supply real Australian beekeepers from our showrooms in Granville (next to Clyde train station) and Meadowbrook (QLD), with fast Australia-wide shipping. For a serious investment like a wax embossing machine, we recommend calling our team on 1300 692 766 to discuss your specific setup before ordering — we’re happy to walk through installation, operation, and maintenance with you.

Order your Wax Embossing Roller Machine today — and turn your accumulated beeswax into unlimited foundation for your hives.
