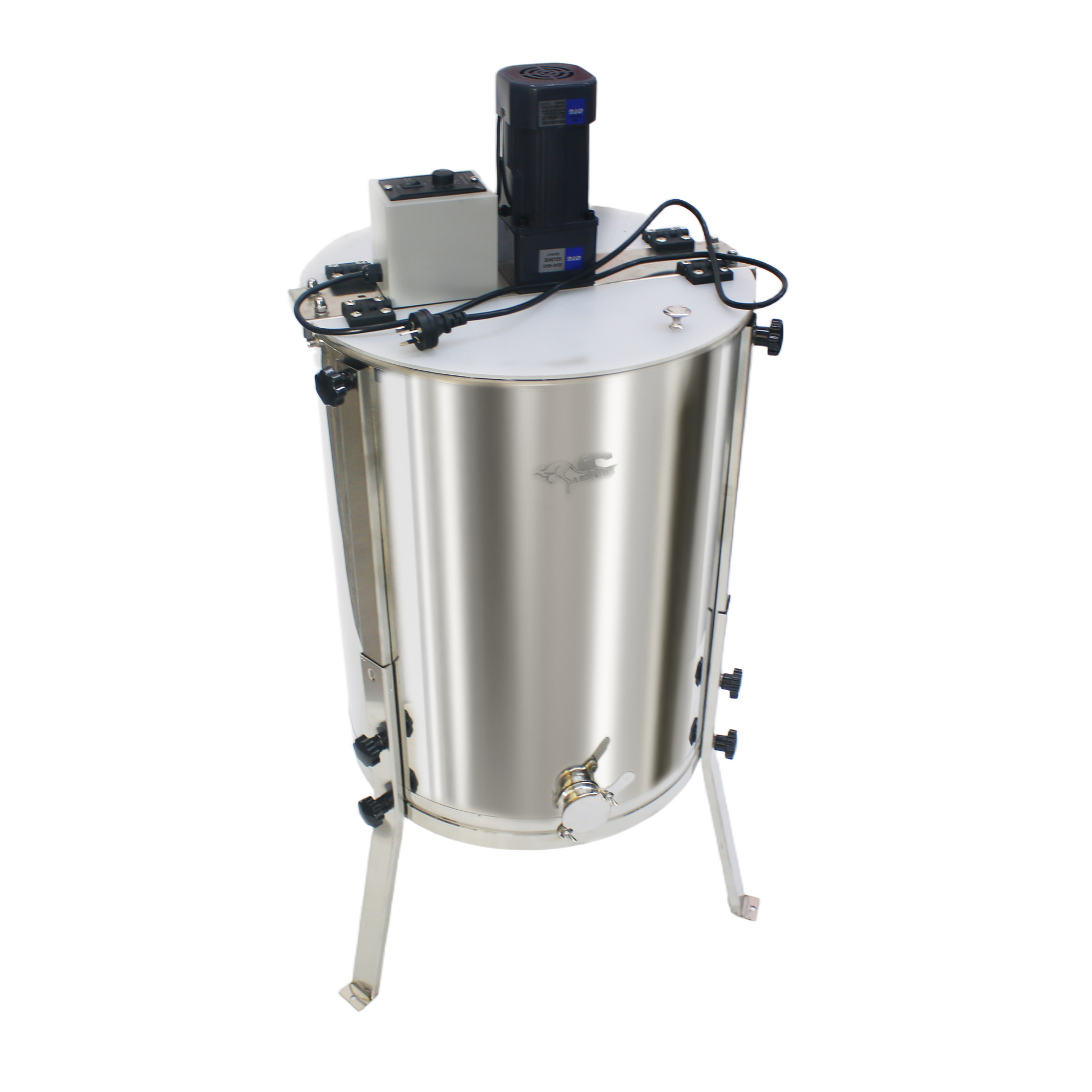

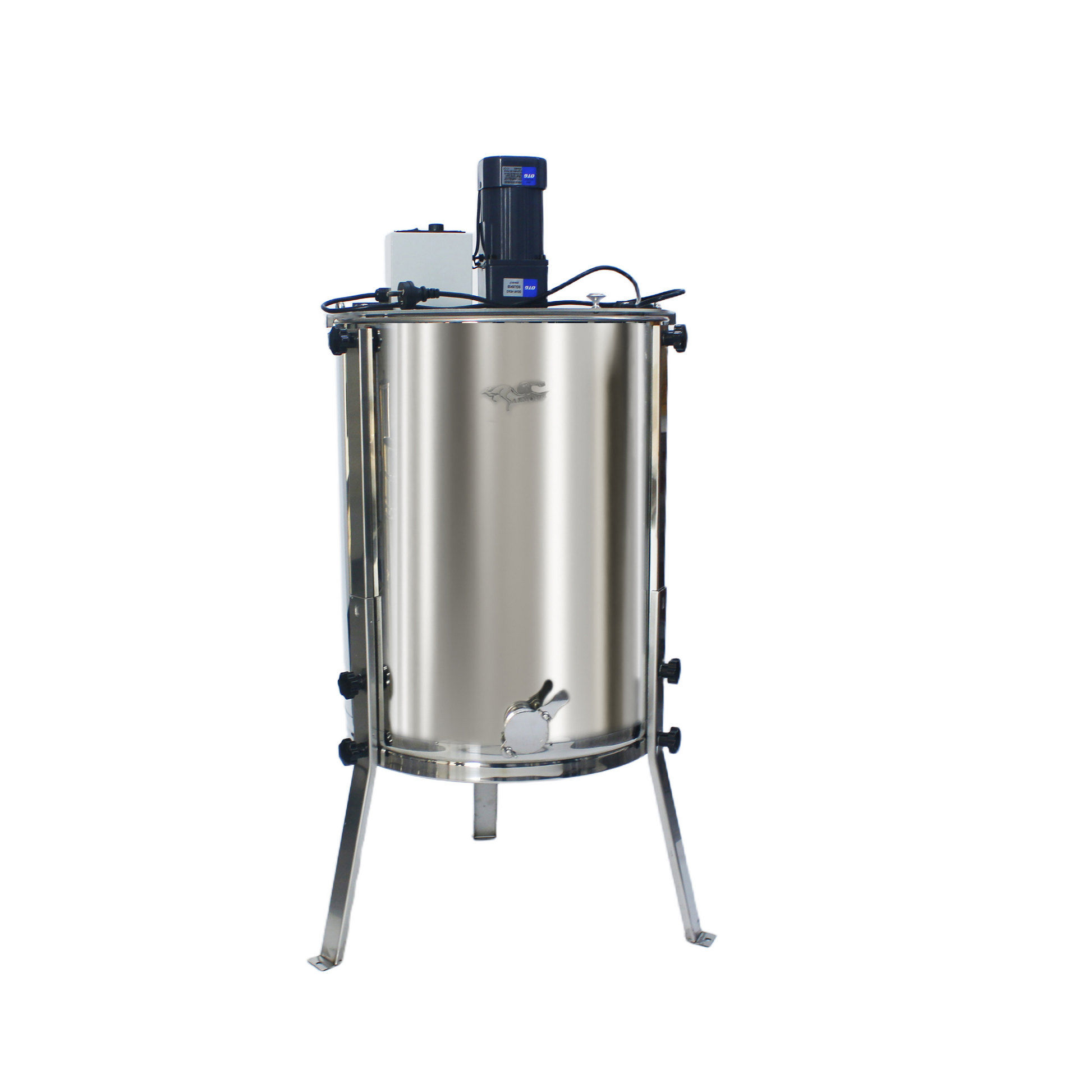

OZ ARMOUR 3-Frame Electric Honey Extractor

Hands-Free Harvesting at a Hobbyist-Friendly Price

Cranking a manual extractor for an entire afternoon is a rite of passage for new beekeepers — but it doesn’t take long before you realise it’s the hardest part of beekeeping: sore shoulders, blistered hands, and the temptation to under-spin to get it over with. The OZ ARMOUR 3-Frame Electric Honey Extractor is the game-changing upgrade that transforms honey harvest day from backbreaking labour into a smooth, hands-free, almost relaxing process. Flip the switch, control the speed, watch through the transparent lid — your honey extracts itself.

Built from premium SS 304 food-grade stainless steel (the same alloy used in commercial honey processing plants), with a 220V electric motor, variable speed control panel, unbreakable transparent lid, and base-level honey gate for clean draining. At $649, it’s the most affordable electric extractor in our OZ ARMOUR range — the natural upgrade for serious hobbyists ready to graduate from manual cranking. Backed by a 2-year warranty because we build it to last decades, not seasons.

Why Upgrade From Manual to Electric?

Once you’ve experienced electric extraction, manual feels like ancient history. Six genuine reasons hobbyists upgrade:

• No more cranking fatigue — the motor does all the work; you load, switch on, and unload
• Consistent extraction speeds — the variable speed control delivers the exact RPM you want every time; no inconsistent spinning rates
• Better extraction completeness — sustained consistent speed extracts more honey from each frame than a tired human cranking.
• Faster harvest cycles — with no fatigue between batches, you can process multiple supers in one session.
• More frequent harvesting — because it’s less work, beekeepers harvest more often, getting fresher honey and better hive management.
• More enjoyable beekeeping — honestly, this is huge; harvest day stops being something you dread and becomes something you look forward to

Why SS 304 Food-Grade Steel Matters

SS 304 is the gold standard for food-contact equipment — used in commercial honey processing plants, food manufacturing worldwide, dairy processing, and pharmaceutical equipment. It’s genuinely better than cheaper alternatives in several important ways: zero corrosion (honey is mildly acidic; lesser steels can react over time), no metallic taste transfer (your honey tastes exactly like your bees made it), smooth non-porous surface (easy to clean, no bacterial buildup, hygienic for years), naturally antibacterial, and dimensionally stable (won’t warp under heavy spinning loads). The 0.50mm-thick body and basket make the entire structure rigid and rattle-free even at full operating speed.

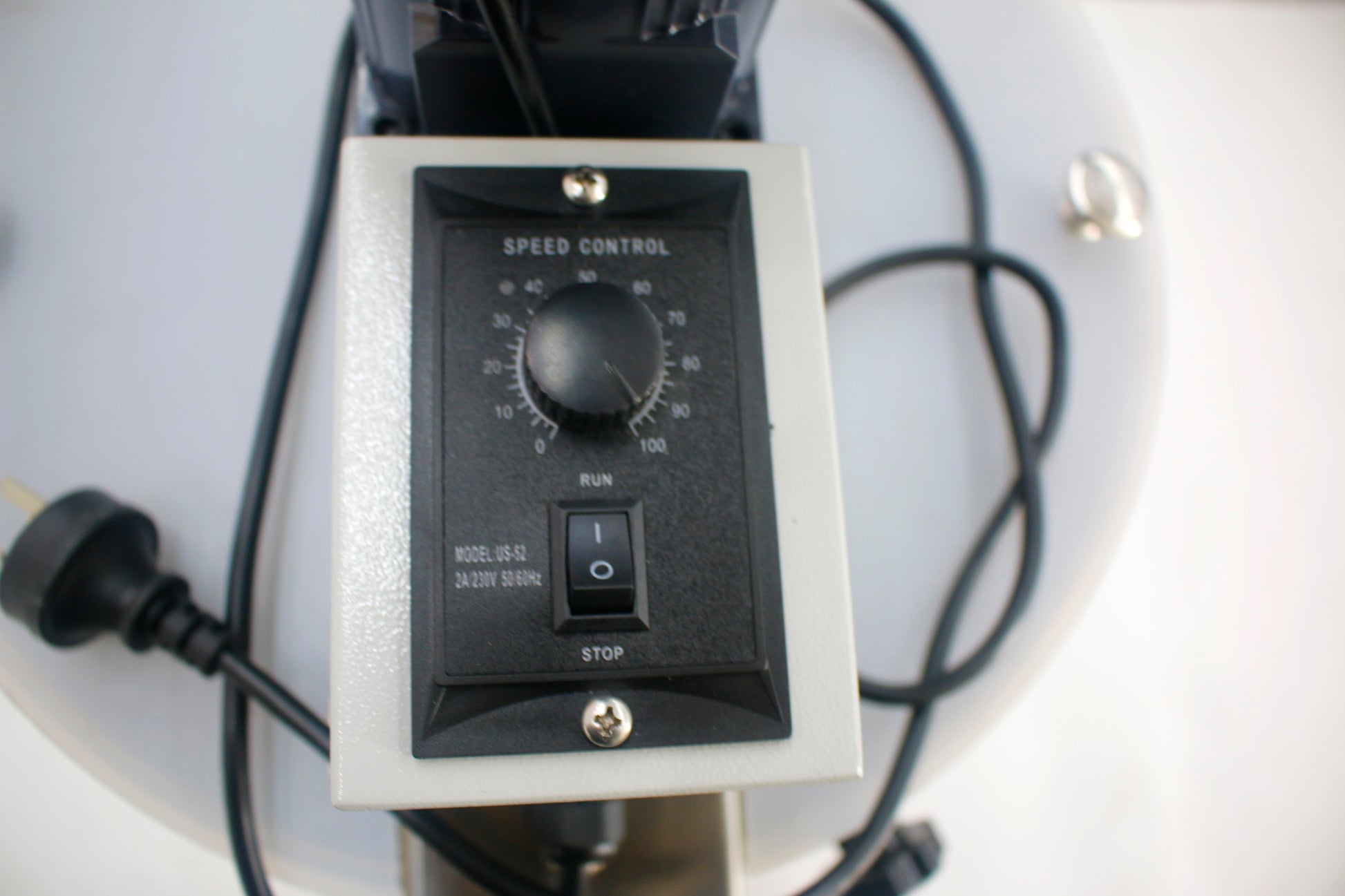

How Does Variable Speed Control Help?

This is what separates good extractors from great ones. The variable-speed control panel lets you precisely match the spinning speed to your honey type and conditions: start low to avoid blowing out delicate fresh wax foundation, ramp up gradually as honey starts to flow, then run at full speed for thorough extraction without damaging the comb. For thicker viscous honey (like ironbark or some bloodwood), higher sustained speeds help; for delicate spring honeys, gentler speeds preserve the comb. Without speed control, you’re stuck with one fixed RPM and have to compromise. This is the single feature most hobbyists upgrading to electric appreciate most.

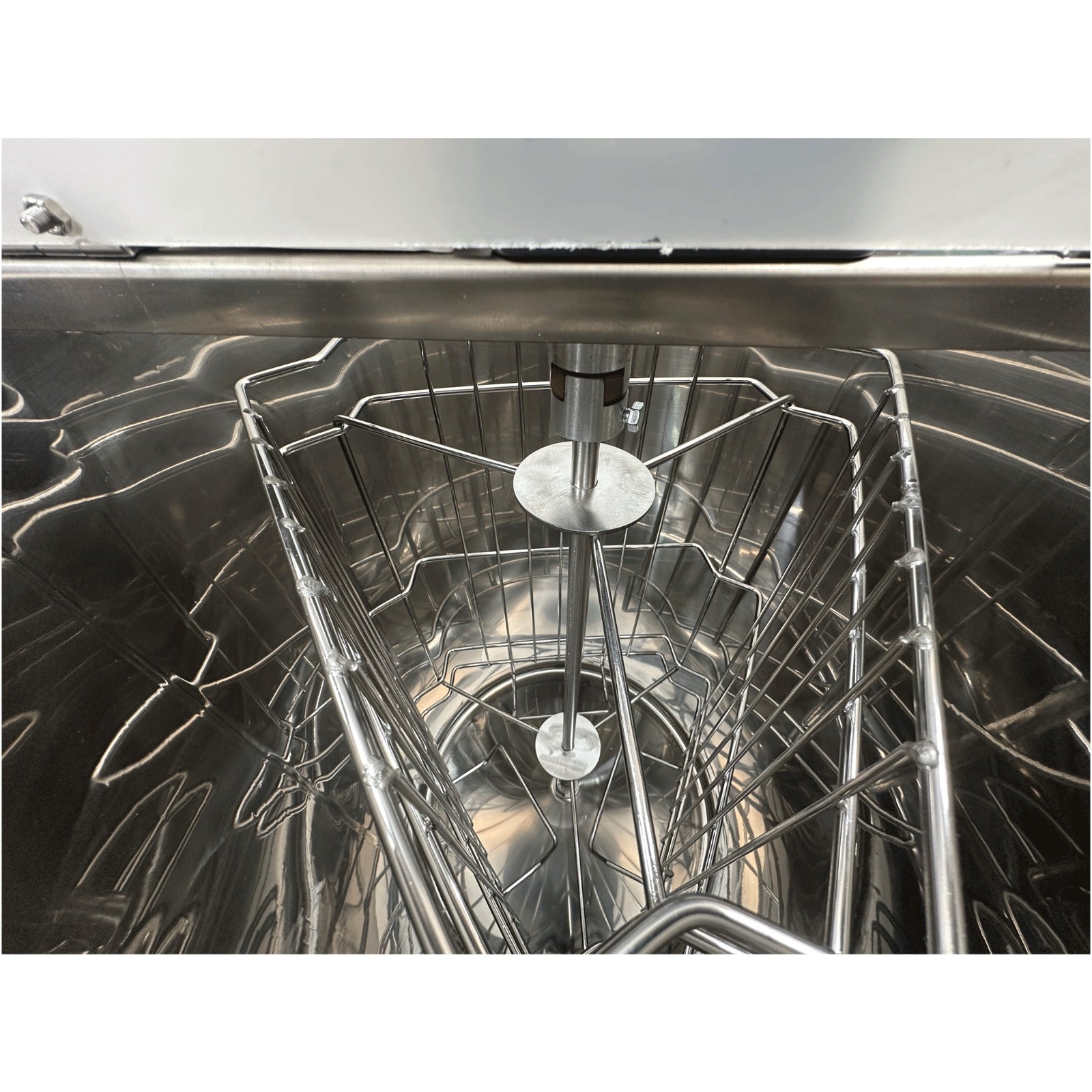

How Does Tangential Extraction Work?

This extractor uses a tangential design — the gentler, more common style for hobbyists and small commercial beekeepers. Frames are loaded with their flat face parallel to the drum wall, so honey spins outward from one side of the frame at a time. You extract one side, flip the frames, then extract the second side. The two advantages:

• Preserves the comb — gentler spinning leaves the wax foundation intact, so bees can refill it next season (saving them weeks of comb-building work)
• Works at lower speeds — you don’t need extreme RPM to get good extraction; lower speeds = quieter operation and less wear on the motor

For hobbyists and small commercial operators, tangential is the right design — it’s why we use it across our entire OZ ARMOUR extractor range.

What Practical Features Make It Easier?

Every detail is engineered for genuine working use:

• Unbreakable transparent lid — watch your extraction in real time; verify when each batch is done without stopping the motor.
• Base-level honey gate — drains honey cleanly without tilting the machine; food-safe stainless steel construction.

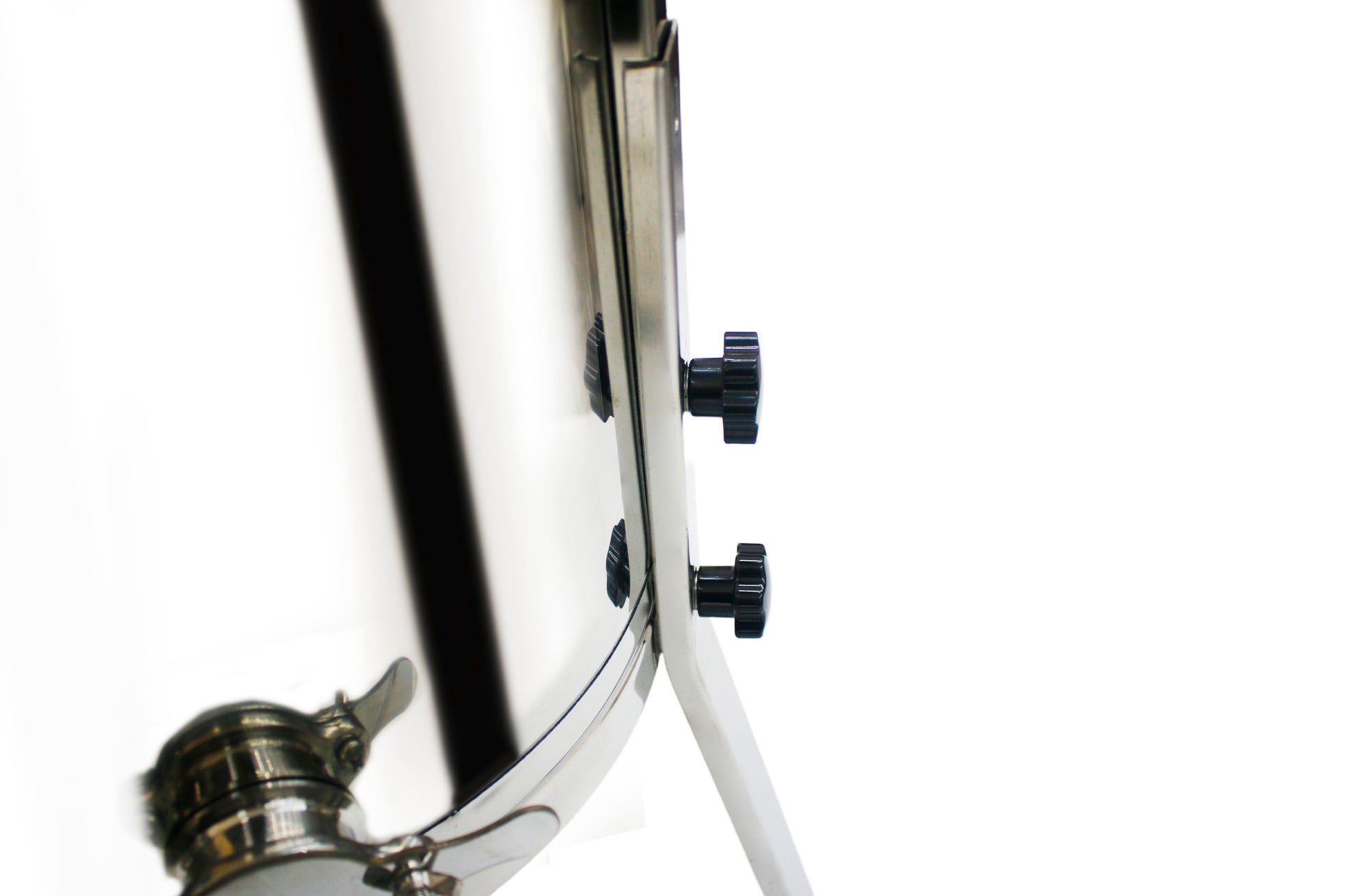

• Electrostatic-painted foot and protection ring — keeps the unit rock-solid stable at full operating speed; minimises vibration.

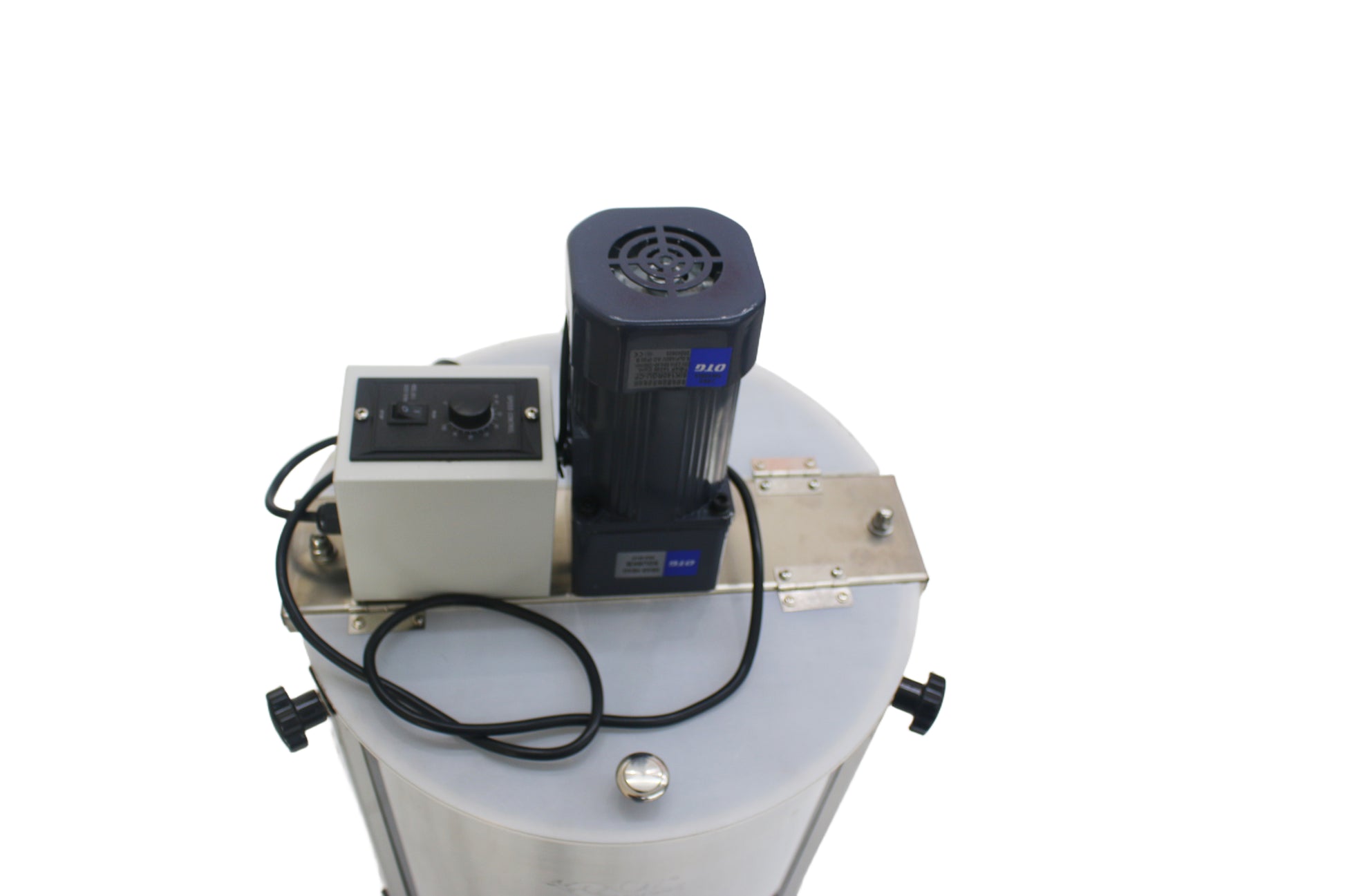

• Built-in speed control panel — mounted on top for easy access during operation

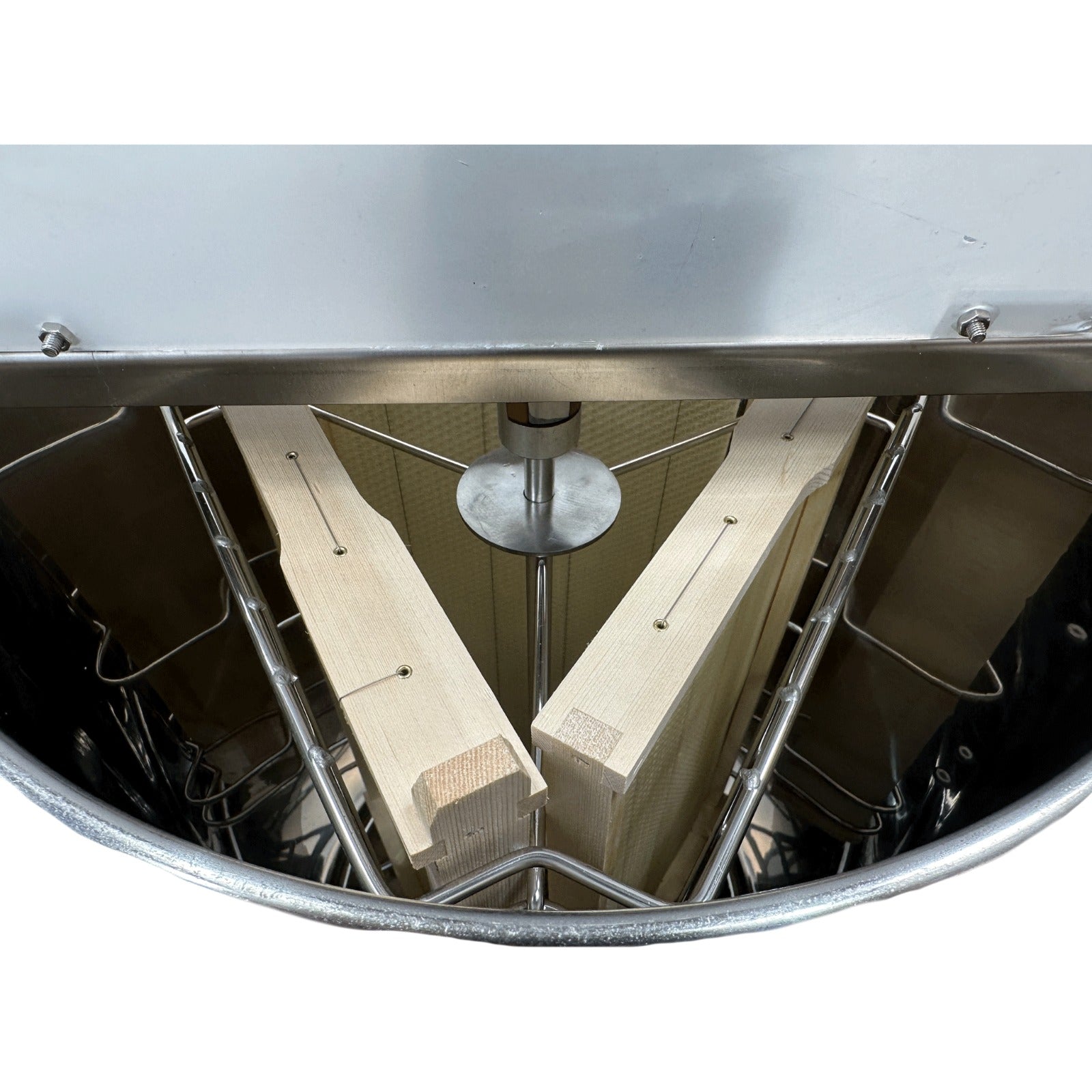

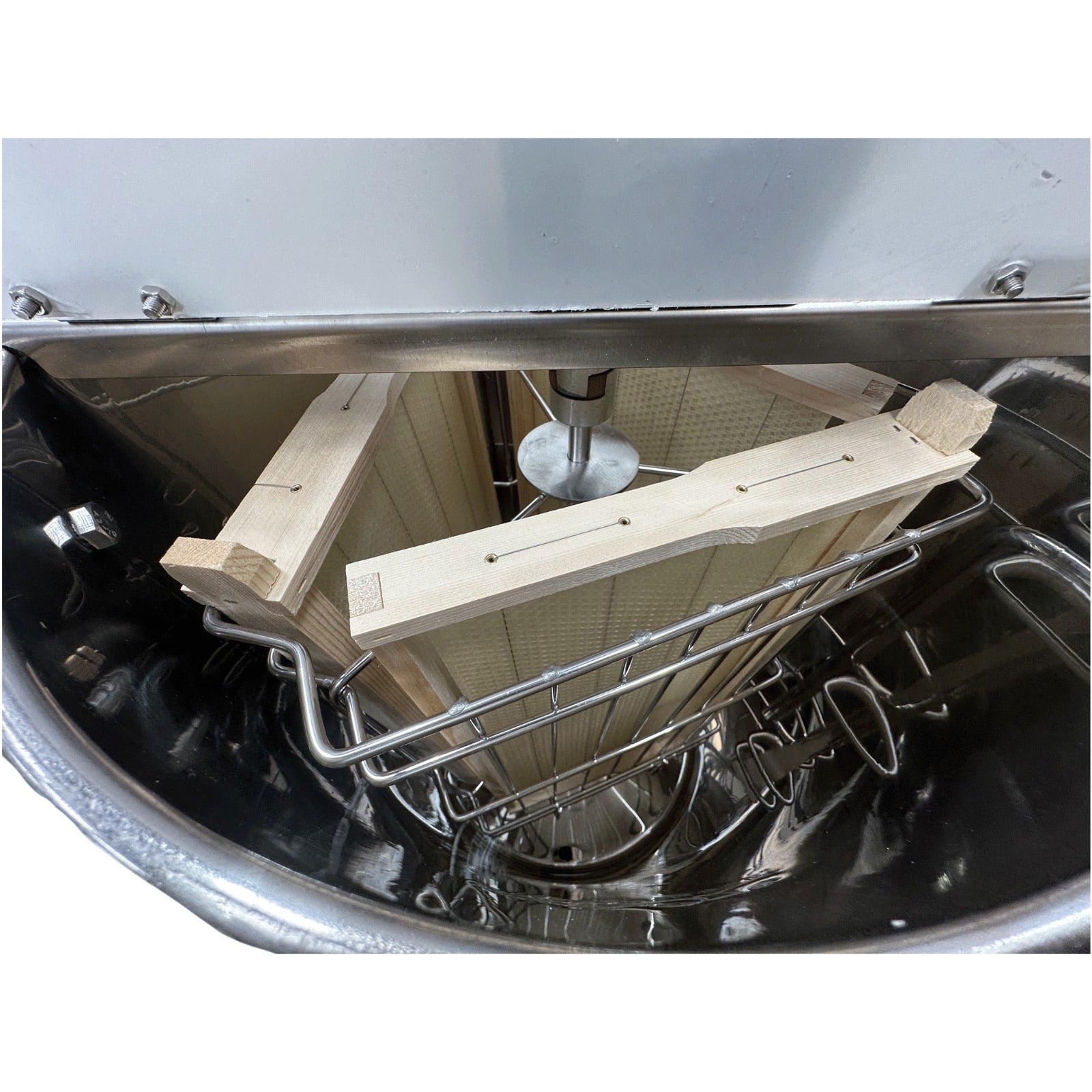

• Wooden frame supports inside the basket — securely hold your frames during high-speed spinning.
• 220V standard household power — plugs into any Australian power socket; no special wiring required
• Compact for hobbyist spaces — fits comfortably in most garages, sheds, or honey extraction rooms.

How Long Does Each Extraction Take?

With an electric extractor, each batch becomes genuinely fast. Typical workflow:

• Load 3 frames: 1–2 minutes
• First-side spin: 3–5 minutes — set the speed, walk away to uncap the next batch.
• Flip frames: 30 seconds
• Second-side spin: 3–5 minutes
• Unload and reload: 1–2 minutes.

Total: roughly 10–15 minutes per batch of 3 frames. For a hobbyist with 5–10 hives, you can extract a full season’s honey harvest in a single evening — something genuinely difficult to achieve with manual extraction.

Is It Easy to Clean After Use?

Yes — dramatically easier than budget extractors. After each extraction: (1) drain all honey out through the base-level gate; (2) rinse the drum thoroughly with warm water (no hot water above 50°C); (3) wipe down with a soft cloth if needed; (4) air dry completely before storage. The SS 304 stainless steel is naturally non-stick — honey runs off cleanly without sticking to the surface, and the smooth interior has no crevices where residue can hide. Compare this to budget extractors with poorly-welded seams or cheaper steels that develop rust pits over time — those become impossible to clean properly after a few seasons.

What’s the 2-Year Warranty Cover?

OZ ARMOUR backs this extractor with a genuine 2-year warranty covering manufacturing defects, motor failures, structural issues, and component reliability. This is meaningful protection because commercial-grade electric extractors are major investments, and you want assurance that the manufacturer stands behind the product. In practice, OZ ARMOUR extractors typically last decades of regular seasonal use — the warranty exists to give you confidence at purchase, but most customers never need to use it. If issues do arise, our support team in Granville and Meadowbrook can arrange repairs, parts, or replacement promptly.

Who Is the 3-Frame Electric Built For?

This is the ideal first electric extractor for serious hobbyists and small operations. It’s especially loved by hobbyists with 3–10 hives upgrading from manual extraction, anyone with shoulder or wrist issues who finds manual cranking painful, sideliners scaling up production but not yet ready for the 8-frame electric flagship, beekeepers harvesting multiple times per season who value time efficiency, backyard apiaries with 220V power access, and anyone who genuinely enjoys beekeeping and wants harvest day to be as enjoyable as the rest of the year. If you’re running 30+ hives commercially, look at our 8-frame electric flagship instead.

Specifications

• Brand: OZ ARMOUR — trusted globally since 2018
• Type: Electric honey extractor with variable speed control
• Capacity: 3 full-depth frames
• Material: SS 304 food-grade stainless steel, 0.50 mm thick
• Extraction design: Tangential — preserves comb for reuse
• Motor: 220V electric
• Speed control: Variable, with control panel on top
• Lid: Unbreakable transparent — live view of extraction
• Honey gate: Stainless steel, base-level for clean draining
• Stability: Electrostatic-painted foot and protection ring
• Frame supports: Wooden inserts inside the basket
• Power requirement: Standard Australian 220V household outlet
• Warranty: 2-year manufacturer warranty
• Customer rating: 4.9/5 stars
